Colchester Tornado T4
Supplier of Cnc Lathe Machine
Importers of CNC Turning Center
Dealers of Vertical Machining Center
Supplier Cylindrical Grinding Machine
Dealer of Used Cnc Lathe Machine
- Maximum Turning Diameter: 230 mm (approx. 9.05")
- Maximum Swing: 260 mm (approx. 10.23")
- X-Axis Travel: 200 mm (approx. 7.87")
- Z-Axis Travel: 450 mm to 540 mm (approx. 17.7" to 21.25"
depending on year/variant)
- Spindle Power: 22 kW (29.5 HP)
- Spindle Speed Range: Up to 5,000 / 6,000 RPM (varies by generation)
- Spindle Bore/Bar Capacity: 61 mm to 77.5 mm (approx. 2.4" to
3.05" spindle bore)
- Turret Capacity: 12-position automatic tool changer (ATC) / revolver

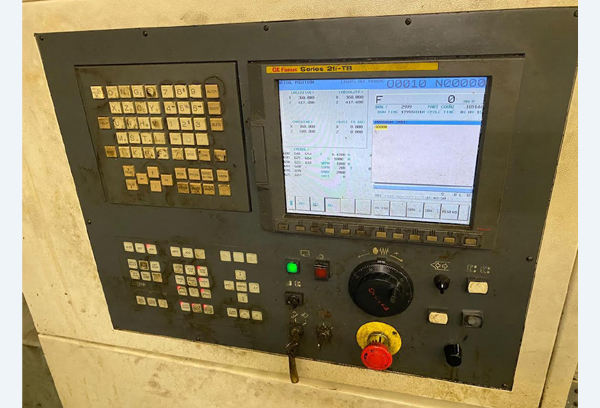

- CNC Control System: Typically equipped with GE Fanuc series controls
(such as Fanuc 21i-TB).
- Length: 3,000 mm (approx. 118")
- Width: 1,300 mm (approx. 51")
- Height: 1,800 mm (approx. 71")
- Approximate Weight: 4,500 kg (approx. 9,800 lbs)
