CNC Lathes / Daewoo Puma 400L

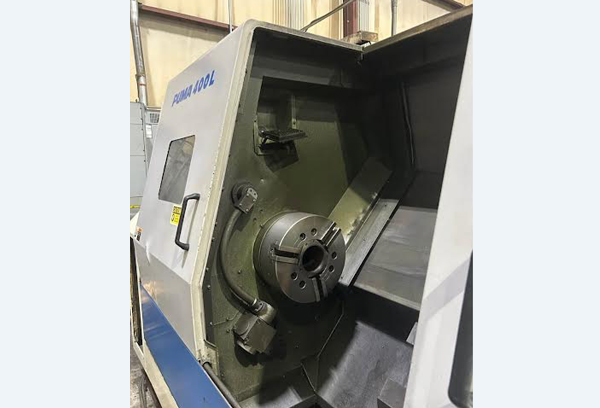

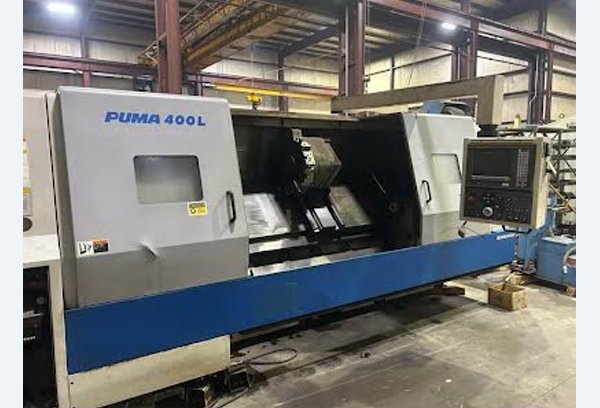

Daewoo Puma 400L
Supplier of Cnc Lathe Machine
Importers of CNC Turning Center
Dealers of Vertical Machining Center
Supplier Cylindrical Grinding Machine
Dealer of Used Cnc Lathe Machine
- Max turning diameter 550-580 mm
- Swing over bed 770 mm
- Swing over cross slide 560 mm
- Max turning length 2,100-2,200 mm
- Distance between centers 2,000 mm
- X-axis travel 362 mm
- Z-axis travel 2,155 mm
- Spindle bore 117 mm
- Bar capacity 116-117 mm
- Spindle nose A2-11
- Spindle speed 20-2,000 rpm
- Spindle motor power 26-30 kW (35-40P)

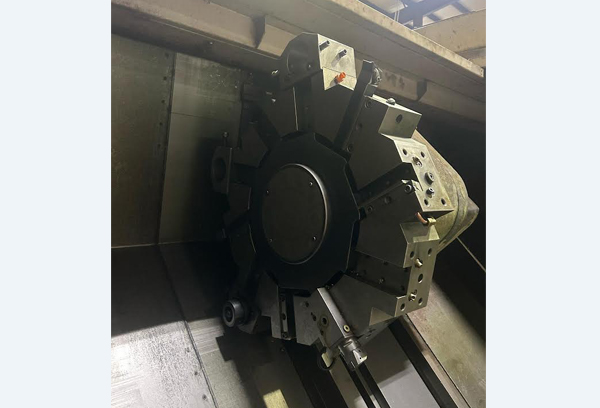

- Turret stations 12 Chuck size 15-21 in (depending on configuration)
- Tailstock quill diameter 120 mm
- Rapid traverse (X/Z) 16 / 20 m/min
- Machine weight 9,000-9,800 kg
- CNC control Fanuc 18i-TB / 21i-TB
- Overall length Approximately 5.3-6.3 m
