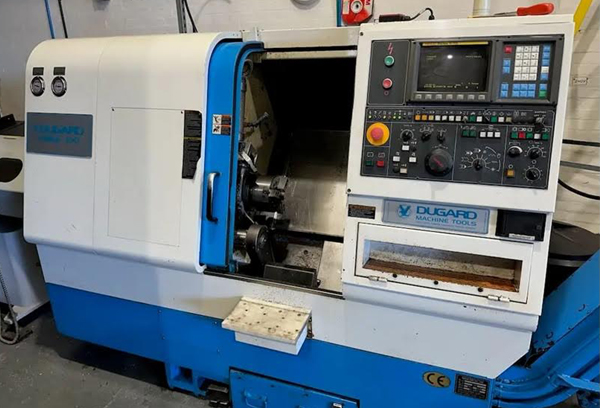

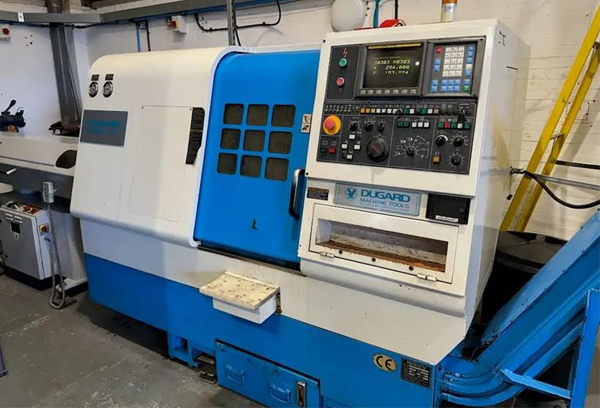

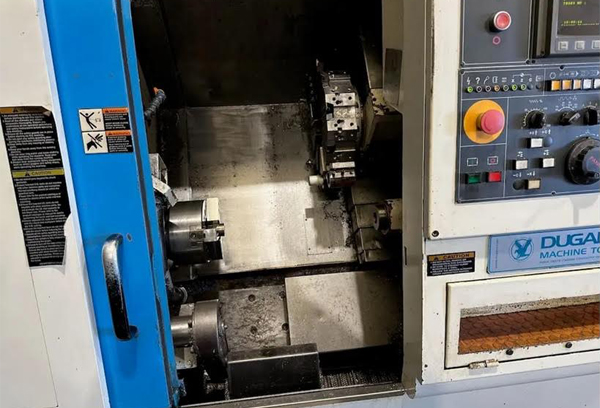

Dugard Eagle 100
Supplier of Cnc Lathe Machine
Importers of CNC Turning Center
Dealers of Vertical Machining Center
Supplier Cylindrical Grinding Machine
Dealer of Used Cnc Lathe Machine
- Maximum Cutting Diameter: 250mm - 260mm
- Maximum Cutting Length: 290mm
- Swing Over Bed: 470mm
- Spindle Speed: 6000 rpm
- Spindle Motor Power: 7kW - 7.5 kW
- Bar Capacity: 52mm (some models 45mm)
- Chuck Size: 152mm (6 inch) / 169mm
- Spindle Nose: A2-5

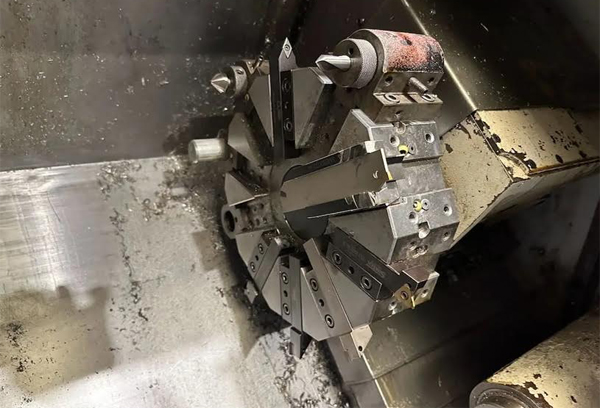

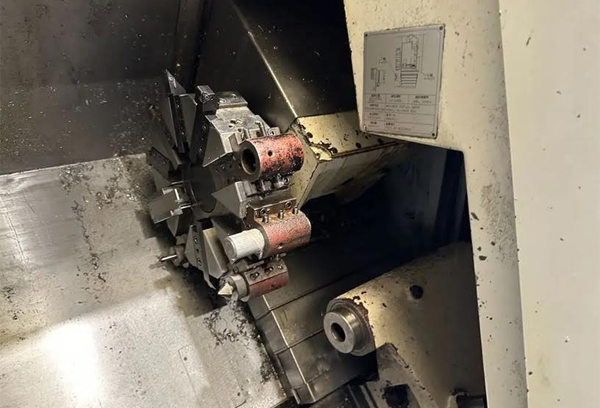

- Turret Positions: 10 stations
- Rapid Traverse (X/Z): 24 m/min
- Approximate Weight: 2800kg
Common Features & Accessories:

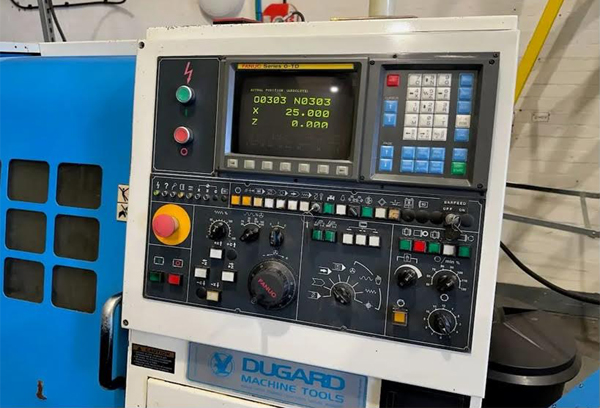

- Control Systems: Fanuc 0i Mate-TB or Siemens 810D
- Tailstock: Hydraulic with 80mm quill travel
- Barfeed: Often paired with 1.5m Hydrafeed multifeed barfeed

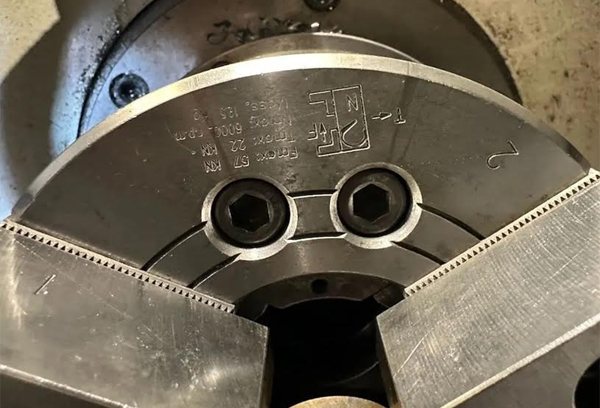

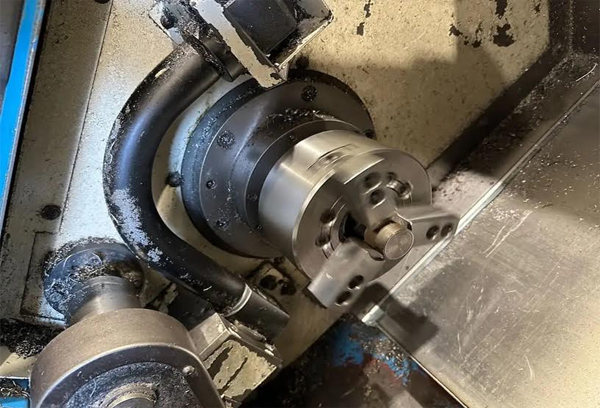

- Tooling: Tool setter, collet chuck/collet set, 3-jaw power chuck

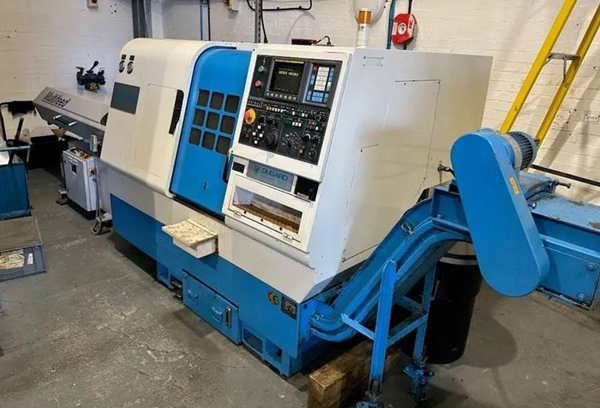

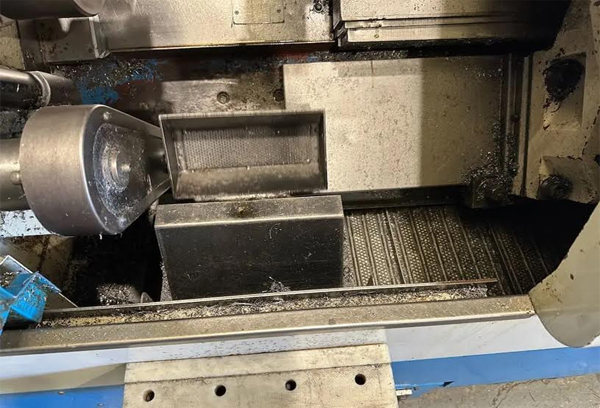

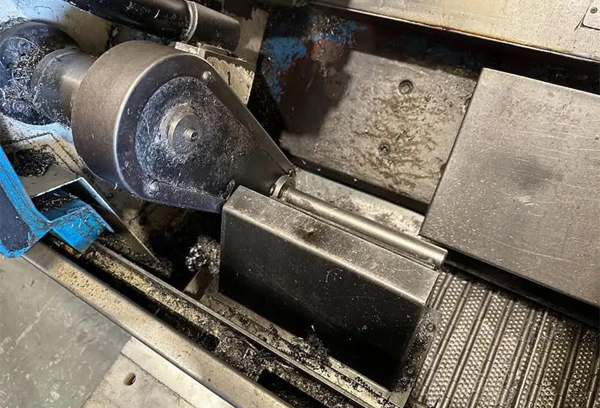

- Options: Swarf conveyor, parts catcher
