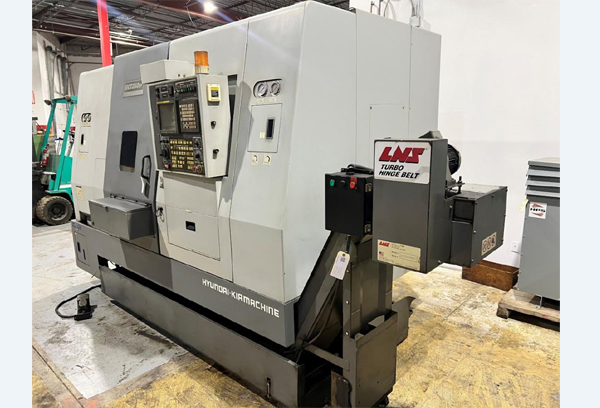

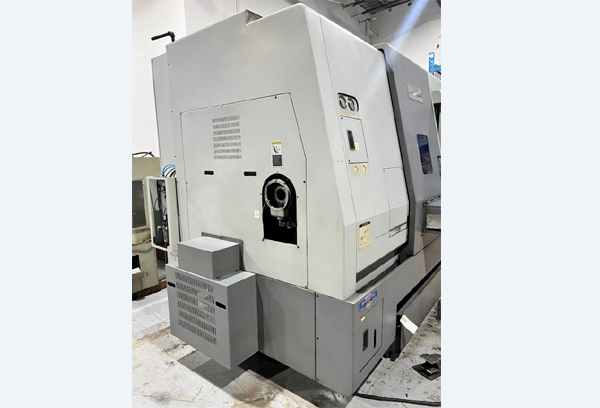

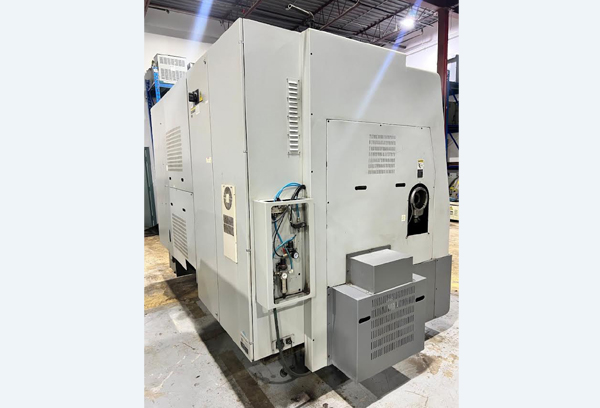

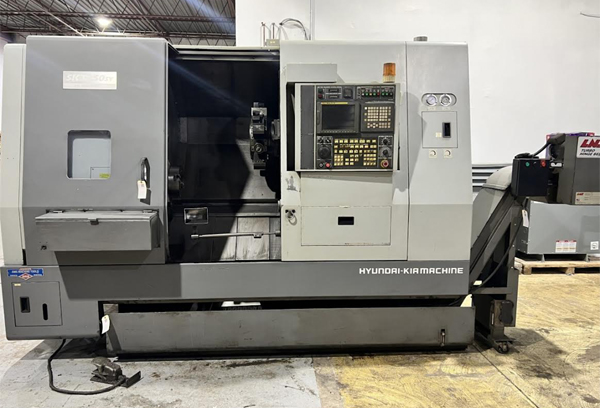

Machine Name -- Hyundai KIA Machine (WIA Corporation)
Model -- SKT250SY
Controller -- Fanuc 18i-TB
Standard Chuck Size -- 254 mm
Max Swing -- 620 mm
Max Machining Diameter -- 410 mm
Max Machining Length -- 700 mm
Cylindrical Rod Machining Capacity -- 76 mm
Feed Length (X/Z/B/Y) -- 230 / 675 / 700 / 110 (+55) mm
Quick Feed Speed (X/Z/B/Y) -- 20 / 24 / 20 / 10 m/min
Guide Structure -- Box Type
Main Spindle Speed -- 3500 RPM
Main Spindle Nose -- A2-8
Through Hole Diameter -- 95 mm
Max Spindle Torque -- 24 kgf·m
Drive Type -- Belt
C-Axis Split Capacity -- 0.001°

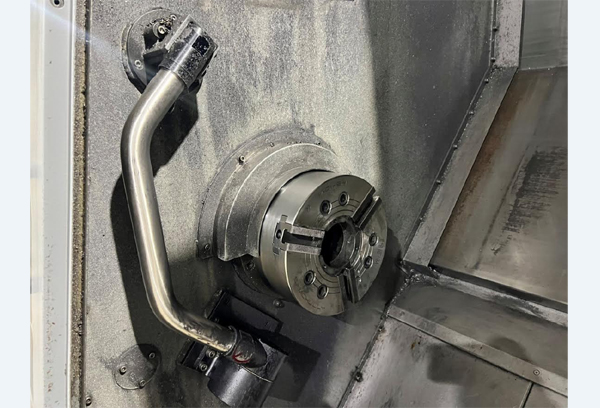

Sub-Spindle Chuck Size -- 152.4 mm
Sub-Spindle Max RPM -- 6000 RPM
Sub-Spindle Motor Power -- 5.5 / 7.5 kW

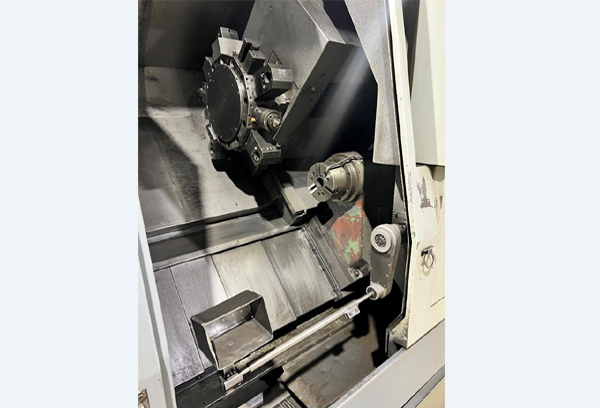

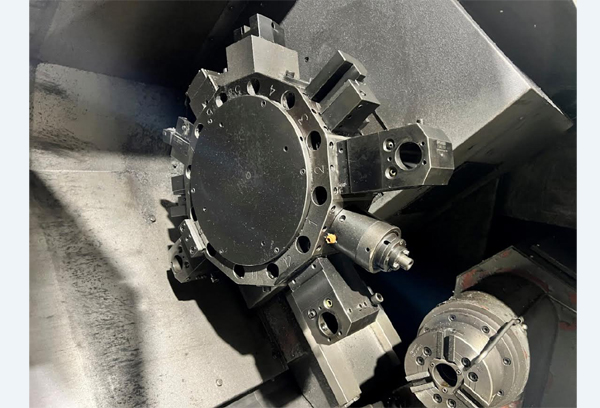

Tools Attached -- 12
Tool Size (OD/ID) -- 25 / 40 mm
Turret Clamp Force -- 4120 kgf
Turret Split Time -- 0.33 sec/step
Max RPM (Live Tooling) -- 4000 RPM
Cutting Capability (E/M, DR) -- 20 mm
Tapping Capacity -- 16 mm

Equipped With

Chip Conveyor
Manuals
Manuals
2 Radial Live Tools
2 Axial Live Tools

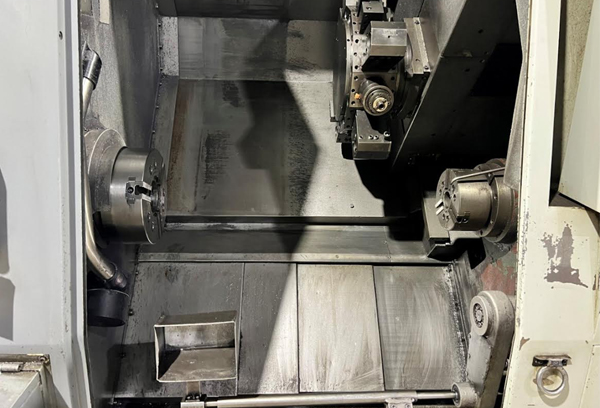

Parts Catcher

Request a Quote
