CNC Lathes / Kingston CL-38C/2000

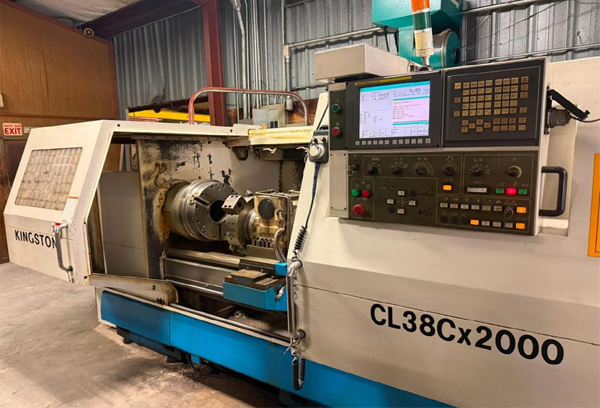

Kingston CL-38C/2000
Supplier of Cnc Lathe Machine
Importers of CNC Turning Center
Dealers of Vertical Machining Center
Supplier Cylindrical Grinding Machine
Dealer of Used Cnc Lathe Machine
- Swing Over Bed --
26 inches.
- wing Over Cross Slide -- 14.6 inches
- Distance Between Centers --
78 - 80 inches
- Spindle Bore -- 7.3 inches (Some models may vary, but 7.3" or 7.08" is common for the CL-38C).
- Spindle Speed -- 2000 RPM (2-speed gearbox)
- Spindle Nose -- A2-11
- Main Motor -- 30 HP (Some configurations might show higher, but 30 HP is standard for this model).
- Turret -- 4-Station Turret or V8 Hydraulic front/H6 Servo rear (varies by specific configuration)
- Tailstock -- Hydraulic with MT#5 Quill
- Approx. Weight -- ~17,857 lbs
- Overall Dimensions -- ~273"-282"L x 91"W x 78"H
Common Standard Features

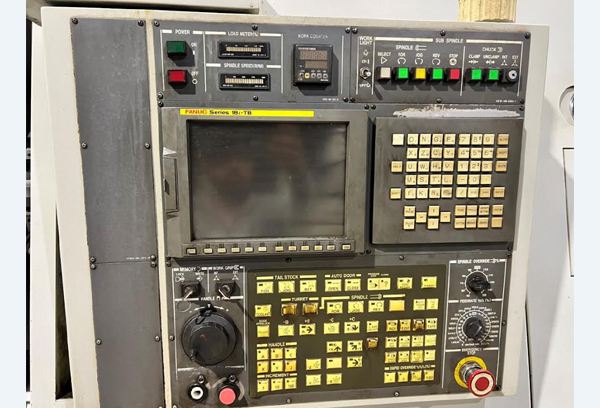

- Fanuc 0i-TC Control

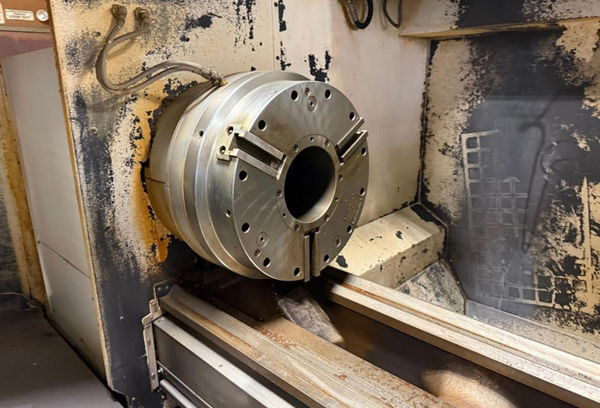

- Large 24" or 25" 4-Jaw Air Chucks (often front and rear)
- Steady Rest
- Chip Conveyor
