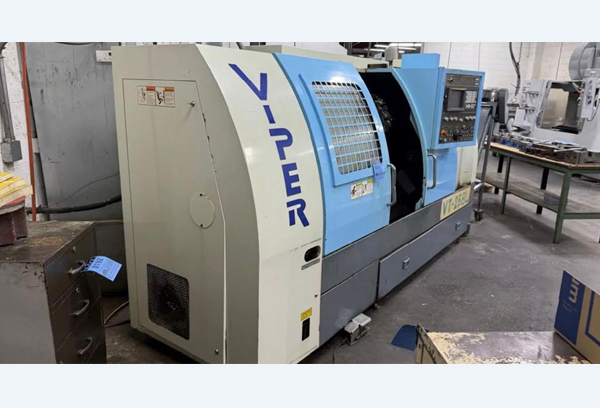

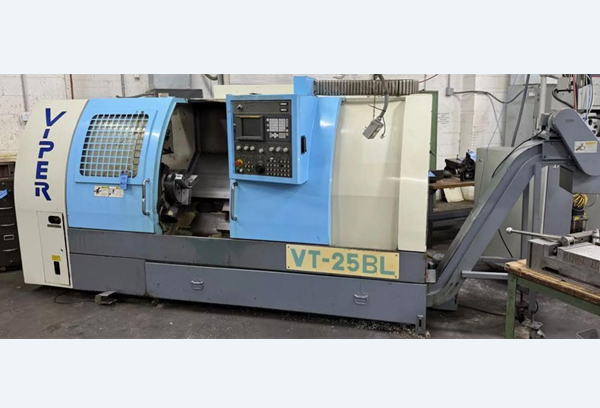

Mighty Viper VT-25BL
Supplier of Cnc Lathe Machine
Importers of CNC Turning Center
Dealers of Vertical Machining Center
Supplier Cylindrical Grinding Machine
Dealer of Used Cnc Lathe Machine
- Max. Swing Over Bed: 18.00"- 20.47" (460 mm- 520 mm)
- Max. Turning Diameter: 11.42"-12.00" (290 mm-305 mm)
- Max. Turning Length: Up to 41.00" (1,050 mm)

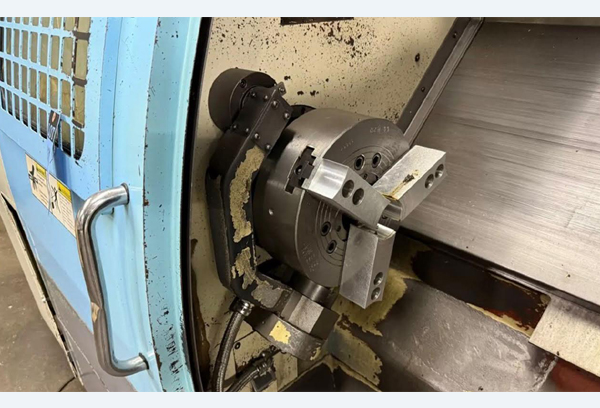

- Chuck Size: 10" (254 mm) standard hydraulic chuck (12"
optional on some configurations)
- Spindle Motor Power: 25 hp to 35 hp (18.6 kW- 26.1 kW)
- Spindle Speed Range: Up to 3,500- 4,000 RPM
- Spindle Nose: A2-8
- Spindle Bore (Thru Hole): 3.40"-3.48" (86 mm-88 mm)
- Bar Capacity: 3.00" (76.2 mm
- Number of Axes: 2
- X-Axis Travel: 6.30" to 9.25" (160 mm-235 mm)
- Z-Axis Travel: 41.18" (1,046 mm)
- Rapid Traverse Feed Rate (X / Z): 475 IPM (inches per minute)
- Turret Capacity: 12 Stations
- Turret Configurations: Choice of a static block tool turret or a live
BMT-65 tooling turret
- Max. Boring Bar Diameter: 2.00" (50 mm)
