Okuma E-Series ES-L6
Supplier of Cnc Lathe Machine
Importers of CNC Turning Center
Dealers of Vertical Machining Center
Supplier Cylindrical Grinding Machine
Dealer of Used Cnc Lathe Machine
- Capacity & Work Area
- Maximum Swing Over Bed: 17.72 in (450 mm)
- Swing Over Carriage: 13.78 in (350 mm)
- Swing Over Cross Slide: 11.81 in (300 mm)
- Maximum Turning Diameter: 8.27 in (210 mm)
- Maximum Turning Length: 11.02 in (280 mm)
- Spindle & Headstock
- Spindle Speed Range: 133 to 6,000 RPM (stepless)
- Spindle Motor: 10 HP (7.5 kW continuous)
- Standard Chuck Size: 6 in (152 mm)
- Spindle Bore Diameter: 2.00 to 2.36 in (varies by year/configuration)
- Maximum Bar Capacity: 1.62 to 1.75 in (41 to 44 mm)
- Tool TurretTurret Type: V12 (12-station ID/OD turret)
- OD Tool Size: 1.00 in (25 mm)
- ID Tool Size: 1.25 in 32 mm

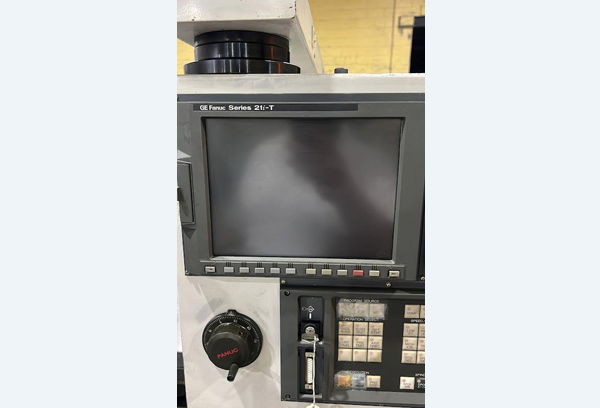

- Controller fanuc series 21i-T
